Outer Mirror Garnish Removal/Installation: Removal
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .)

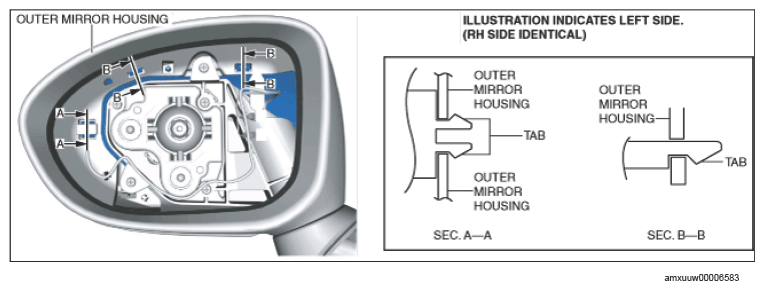

- Press the tabs of the outer mirror garnish using the remover tool and detach the tabs from the outer mirror housing.

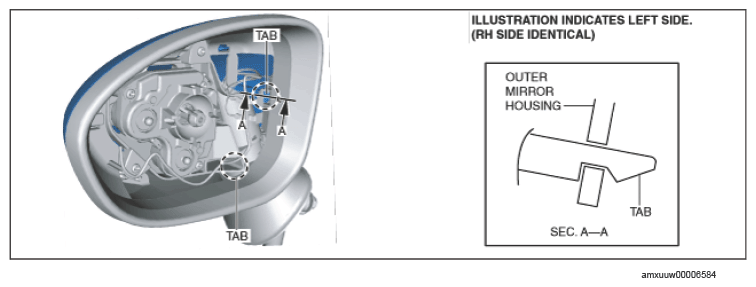

- Press the tab of the outer mirror garnish in the direction of the arrow shown in the figure using a tape-wrapped precision flathead screwdriver, and detach the tab from the outer mirror housing.
- Remove the outer mirror garnish.
