Adjuster Anchor Removal/Installation: Notes

WARNING:

Incorrect handling of the front seat belt (front pre-tensioner seat belt) may cause the pre-tensioner to activate (deploy) unexpectedly and cause injury. Read the SRS air bag system service warnings and cautions before handling a front seat belt (front pre-tensioner seat belt). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Switch the ignition off.
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Set the adjuster to the lowest position.
Remove the following parts:
1. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
2. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
3. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
Remove bolt A. (See BOLT INSTALLATION NOTE .)

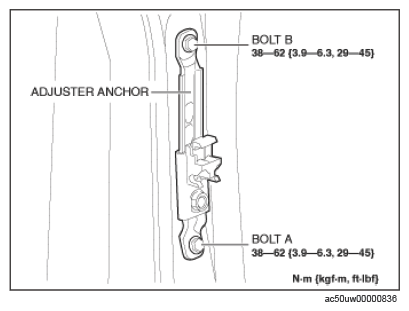

Fig 1: Adjuster Anchor And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove bolt B. (See BOLT INSTALLATION NOTE .)
Remove the adjuster anchor.
Install in the reverse order of removal.
