Connector Viewing Direction
- The connector viewing direction is indicated by a viewing direction symbol mark.
- The connector viewing direction indication is the same as the indication in the wiring diagram.
- There are three viewing directions as follows.
- Part-side connector Visually inspect a part side connector from the terminal side.
*: Part names are indicated only if there are multiple connector figures for different parts in the same item

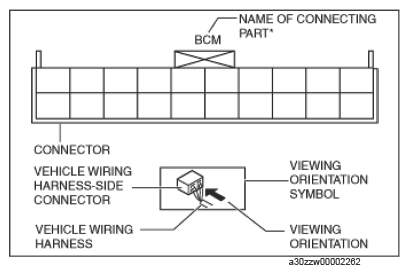

- Vehicle wiring harness side connector Visually inspect vehicle wiring harness side connectors from the wiring harness side.
- Other In the case of the following connectors that need to be seen from the terminal side in the vehicle wiring harness-side connector, they are seen from the terminal side. *: With the wiring harness-side connector, connecting part names of all connectors are displayed in the figure.
- Main fuse block and relay in main fuse block
- Data link connector 2
- Check connector
- Relay box
*: Part names are indicated only if there are multiple connector figures for different parts in the same item.
