Rear Coil Spring Installation Note

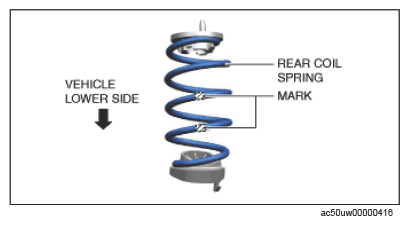

Install the rear coil spring with the mark facing the vehicle lower side.

Courtesy of MAZDA MOTORS CORP.

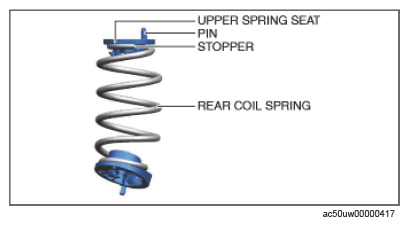

Install the rear coil spring with the end of the coil spring seated on the stopper of the upper spring seat.

Courtesy of MAZDA MOTORS CORP.
Install the upper spring seat pin to the positioning hole on the body side.
