Inside cabin

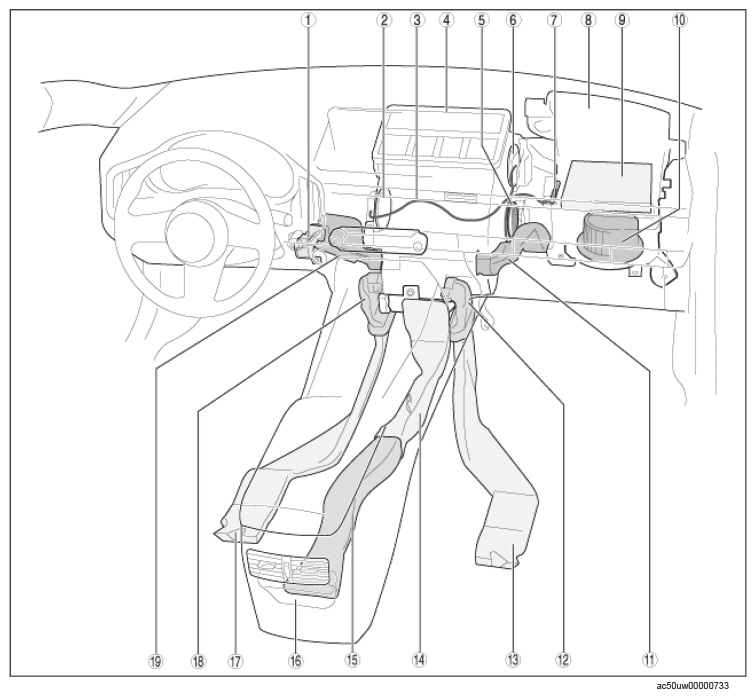

HVAC BASIC SYSTEM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Driver-side front heat duct No. 2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION .) |
| 2 | Driver-side air mix main link (full-auto air conditioner) (See AIR MIX MAIN LINK REMOVAL/INSTALLATION .) |
| 3 | A/C unit short-cord (See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION .) |
| 4 | A/C unit (See A/C UNIT REMOVAL/INSTALLATION .) (See A/C UNIT DISASSEMBLY/ASSEMBLY .) |
| 5 | Passenger-side air mix main link (See AIR MIX MAIN LINK REMOVAL/INSTALLATION .) |
| 6 | Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION .) |
| 7 | Air intake link (See AIR INTAKE LINK REMOVAL/INSTALLATION .) |
| 8 | Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION .) |
| 9 | Air filter (See AIR FILTER REMOVAL/INSTALLATION .) (See AIR FILTER INSPECTION .) |
| 10 | Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION .) (See BLOWER MOTOR INSPECTION .) |
| 11 | Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .) |
| 12 | Passenger-side rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION .) |
| 13 | Passenger-side rear heat duct No. 2 (See REAR HEAT DUCT REMOVAL/INSTALLATION .) |
| 14 | Rear vent duct No. 1 (With rear vent) (See REAR VENT DUCT REMOVAL/INSTALLATION .) |
| 15 | Rear vent duct No. 2 (With rear vent) (See REAR VENT DUCT REMOVAL/INSTALLATION .) |
| 16 | Rear vent duct No. 3 (With rear vent) (See REAR VENT DUCT REMOVAL/INSTALLATION .) |
| 17 | Driver-side rear heat duct No. 2 (See REAR HEAT DUCT REMOVAL/INSTALLATION .) |
| 18 | Driver-side rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION .) |
| 19 | Driver-side front heat duct No. 1 (See FRONT HEAT DUCT REMOVAL/INSTALLATION .) |
