Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System (VIN M)
>>

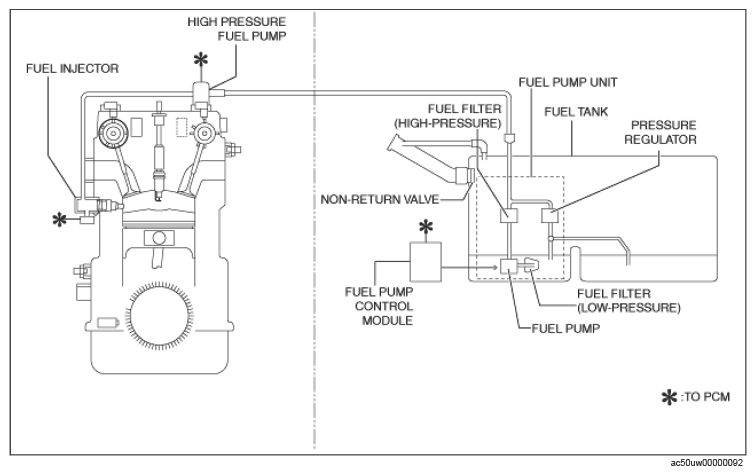

Fuel System Flow Diagram
Fuel System Flow Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
