Charging System Location Index (VIN M)

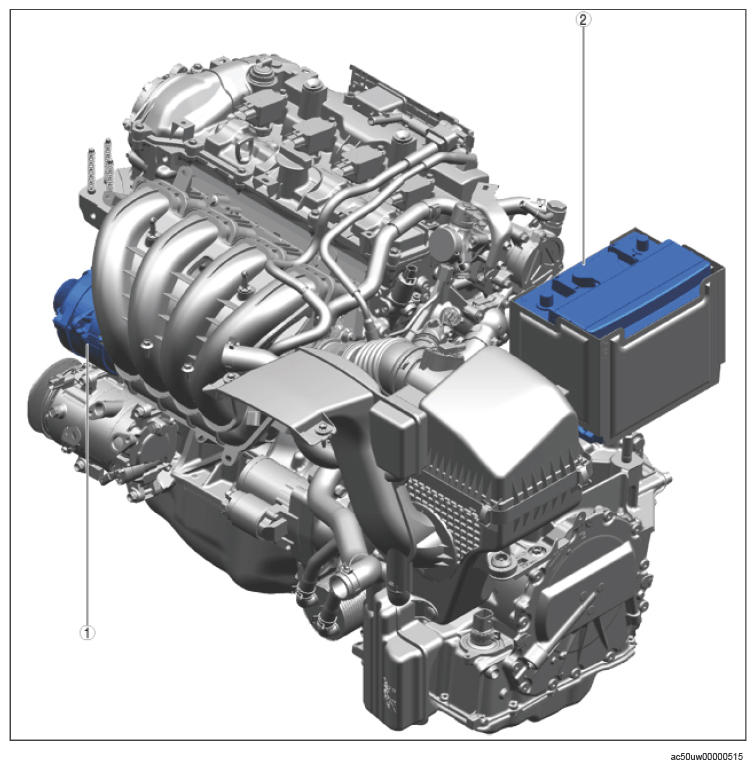

Fig 1: Charging System Components Location (SKYACTIV-G VIN M)

Courtesy of MAZDA MOTORS CORP.

CHARGING SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Generator (See GENERATOR REMOVAL/INSTALLATION (VIN M) .) (See GENERATOR INSPECTION (VIN M) .)
2	Battery (See EXHAUST SYSTEM REMOVAL/INSTALLATION (VIN M) .) (See BATTERY REMOVAL/INSTALLATION (VIN M) .) (See BATTERY INSPECTION .) (See BATTERY RECHARGING .)
