Trunk Board Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)

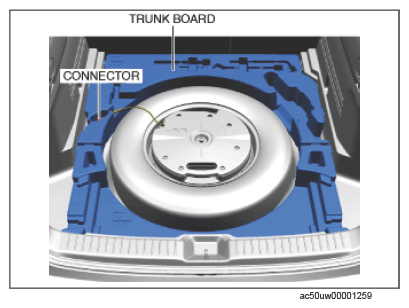

  3. Disconnect the connector. (with bass-box)
    G15743272Courtesy of MAZDA MOTORS CORP.
  4. Remove the front trunk board in the direction of the arrow shown in the figure above.
  5. Install in the reverse order of removal.
