Console Side Panel Removal/Installation

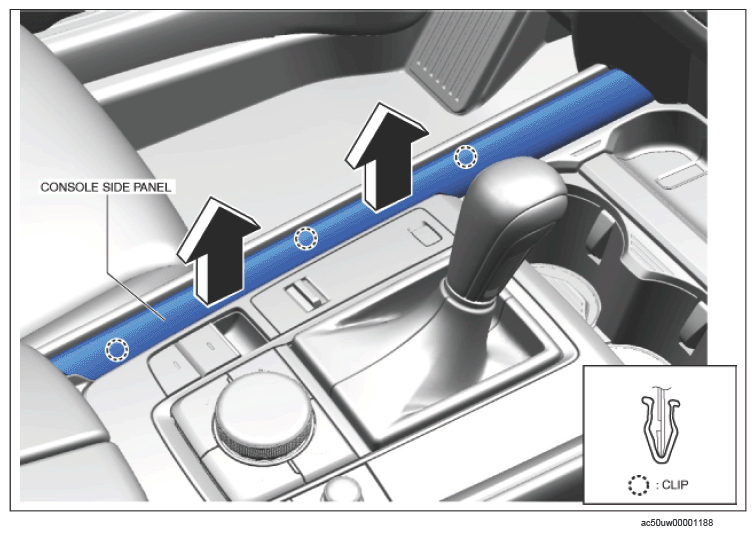

  1. Move the console side panel in the direction of the arrow shown in the figure below and remove the clips.
    G15743120Courtesy of MAZDA MOTORS CORP.
  2. Remove the console side panel.
  3. Install in the reverse order of removal.
