Audio Amplifier Removal/Installation

WARNING:

Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the appropriate service information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Remove the head restraint (RH).
Remove the front seat (RH) installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the front seat belt lower anchor (RH). (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
Perform the following procedure.
1. Switch the ignition off.
2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front seat (RH). (See FRONT SEAT REMOVAL/INSTALLATION .)

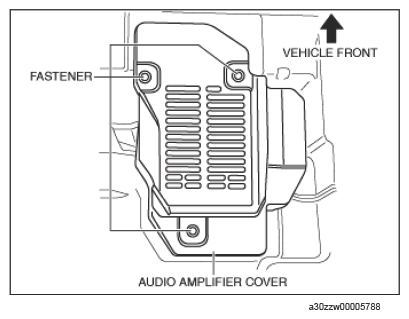

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier cover.
Remove the nuts.

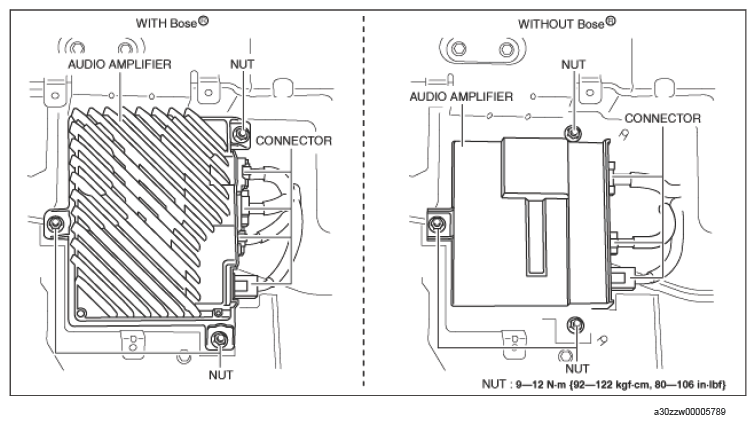

Fig 1: Audio Amplifier, Connector And Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.
Remove the audio amplifier.
To remove the bracket, perform the following procedure.
1. Remove the bolts.

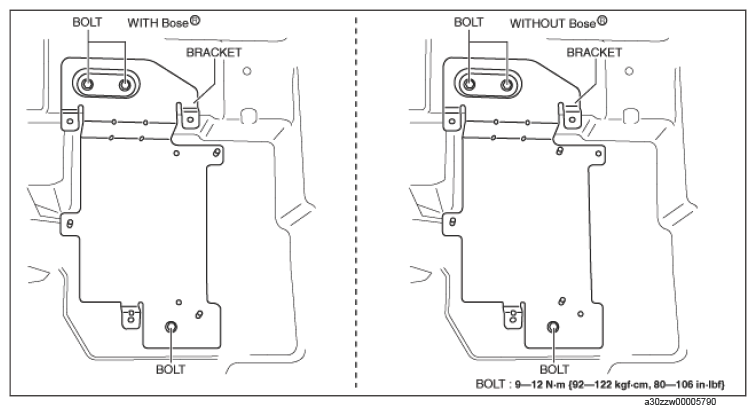

  Fig 2: Bracket And Bolts With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
2. Remove the bracket.
Install in the reverse order of removal.
