Steering Location Index

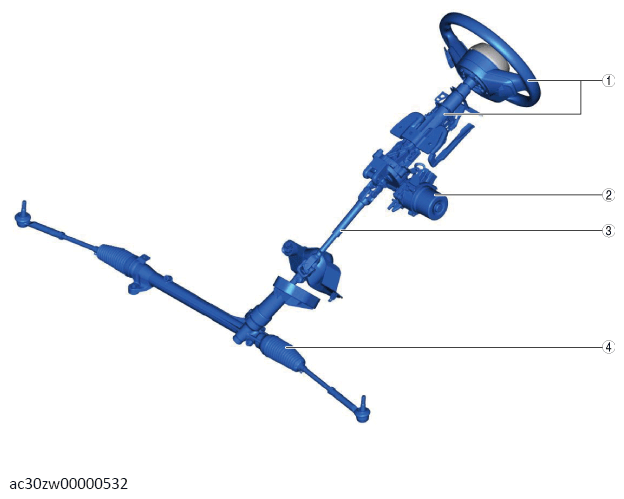

Fig 1: Steering Components Location

Courtesy of MAZDA MOTORS CORP.

STEERING COMPONENT OPERATIONS

Component No.	Refer to
1	Steering wheel and column (See STEERING WHEEL AND COLUMN INSPECTION .) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .) (See STEERING WHEEL BEZEL REMOVAL/INSTALLATION .) (See STEERING WHEEL COVER REMOVAL/INSTALLATION .) (See STEERING SHAFT INSPECTION .)
2	EPS Control Module (See EPS CONTROL MODULE INSPECTION .)
3	Intermediate shaft (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION .)
4	Steering gear and linkage (See TIE-ROD END REPLACEMENT .) (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .) (See STEERING GEAR AND LINKAGE INSPECTION .) (See STEERING GEAR AND LINKAGE DISASSEMBLY .) (See TIE-ROD END INSPECTION .) (See TIE ROD INSPECTION .) (See STEERING GEAR AND LINKAGE ASSEMBLY .)
