Steering Gear And Linkage Removal Note
Steering Gear And Linkage Removal Note

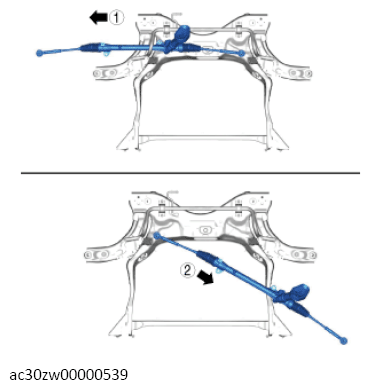

Move the steering gear and linkage in the direction of the arrow in the order shown in the figure below and remove it.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
