Tie-Rod Disassembly Note

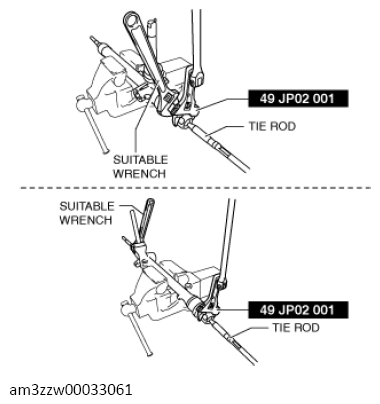

Lock the steering gear against rotation using a wrench and remove the tie rod using the SST.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
