Indicator Unit Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)

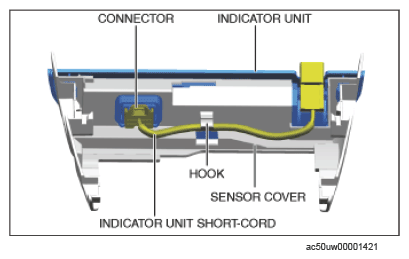

  3. Disconnect the connector.
    G15743620Courtesy of MAZDA MOTORS CORP.
  4. Remove the indicator unit short-code from the hook.
  5. Remove the indicator unit from the sensor cover.

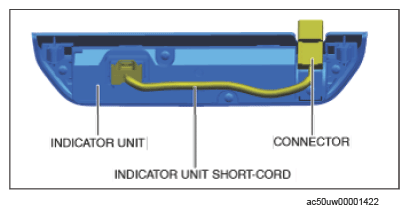

  6. Detach the connector.
    G15743621Courtesy of MAZDA MOTORS CORP.
  7. Remove the indicator unit short-code from the indicator unit.
  8. Install in the reverse order of removal.
