WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

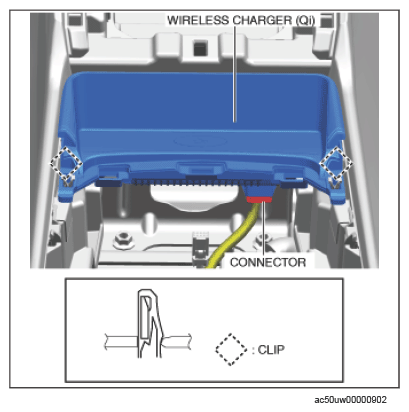

  3. Disconnect the connector.
    G15743589Courtesy of MAZDA MOTORS CORP.
  4. Remove the wireless charger (Qi) while detaching the clips.
  5. Install in the reverse order of removal.
