Rear Accessory Socket Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear accessory socket (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION .)

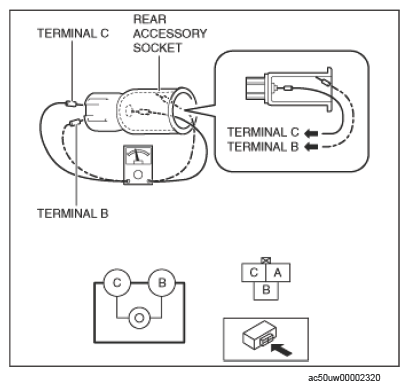

  3. Connect the tester probe to the position shown in the figure below and verify that there is continuity.
    G15743546Courtesy of MAZDA MOTORS CORP.
