Rear Door Glass Run-Channel Removal/Installation

  1. Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Power window subswitch component (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    3. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
    5. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
    6. Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
  4. Remove the fasteners.

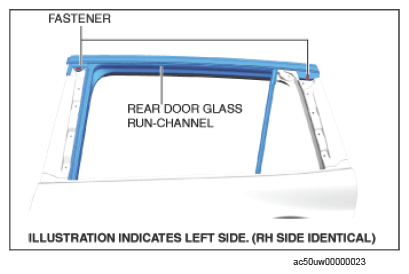

    G15742701Courtesy of MAZDA MOTORS CORP.
  5. Partially peel back the rear door glass run-channel.

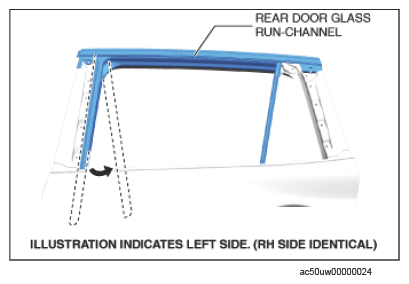

    G15742702Courtesy of MAZDA MOTORS CORP.
  6. Using a remover tool, detach the clips.
  7. Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure below and remove it from the rear door hooks.

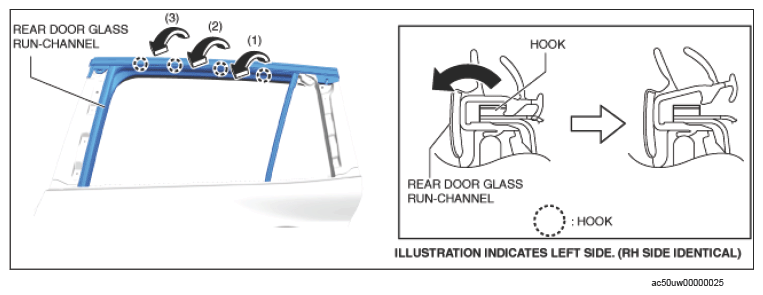

    G15742703Courtesy of MAZDA MOTORS CORP.
  8. Remove the rear door glass run-channel.
  9. Install in the reverse order of removal.
  10. Perform the power window system initialization procedure. (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
