Front Door Glass Run-Channel Removal/Installation

Fully open the front door glass.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
3. Power window subswitch (front) (to remove from passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
4. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
6. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
7. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
8. Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
9. Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)

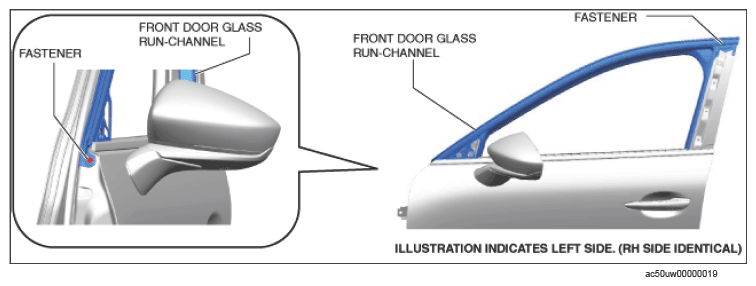

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.

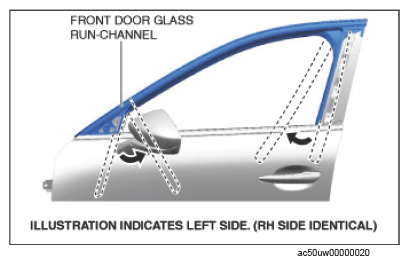

Partially peel back the front door glass run-channel.

Courtesy of MAZDA MOTORS CORP.

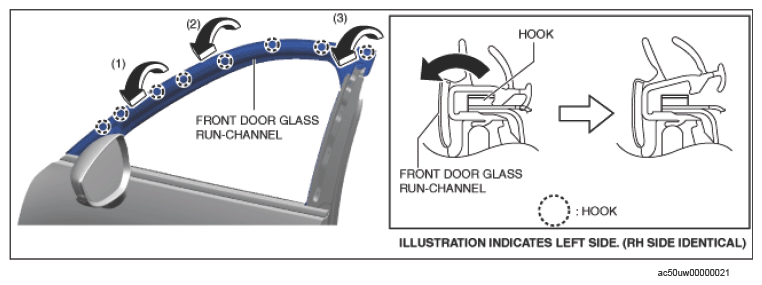

Move the front door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure below and remove it from the front door hooks.

Courtesy of MAZDA MOTORS CORP.
Remove the front door glass run-channel.
Install in the reverse order of removal.
Perform the power window system initialization procedure. (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
