I-ACTIV AWD System Location Index

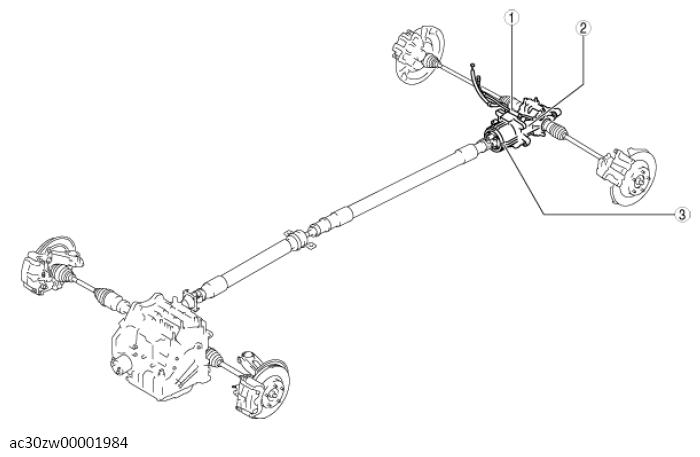

Fig 1: I-Activ AWD System Components Location

Courtesy of MAZDA MOTORS CORP.

I-ACTIV AWD SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	AWD solenoid (See AWD SOLENOID INSPECTION .)
2	Differential oil temperature sensor (See DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION .) (See DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
3	Coupling component (See COUPLING COMPONENT REMOVAL/INSTALLATION .) (See COUPLING COMPONENT TEMPERATURE SENSOR INSPECTION .) (See COUPLING COMPONENT CALIBRATION DATA WRITING .)
