Notification And Warning Speaker Removal/Installation: Front

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the lower column cover. (See COLUMN COVER REMOVAL/INSTALLATION .).
  3. Remove the screws.

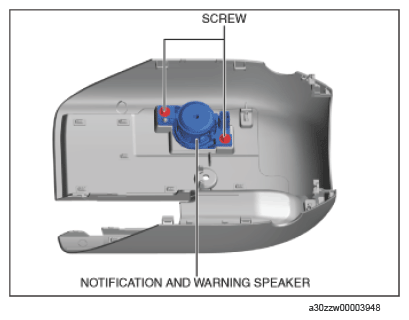

    G15743630Courtesy of MAZDA MOTORS CORP.
  4. Remove the notification and warning speaker from the column cover.
  5. Install in the reverse order of removal.
