Bolt Installation Note

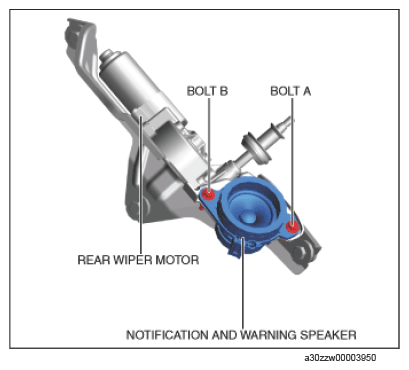

  1. Temporarily tighten bolt A.
    G15743632Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten bolt B.
  3. Completely tighten bolt A.
  4. Completely tighten bolt B.
