Liftgate Recess Removal/Installation

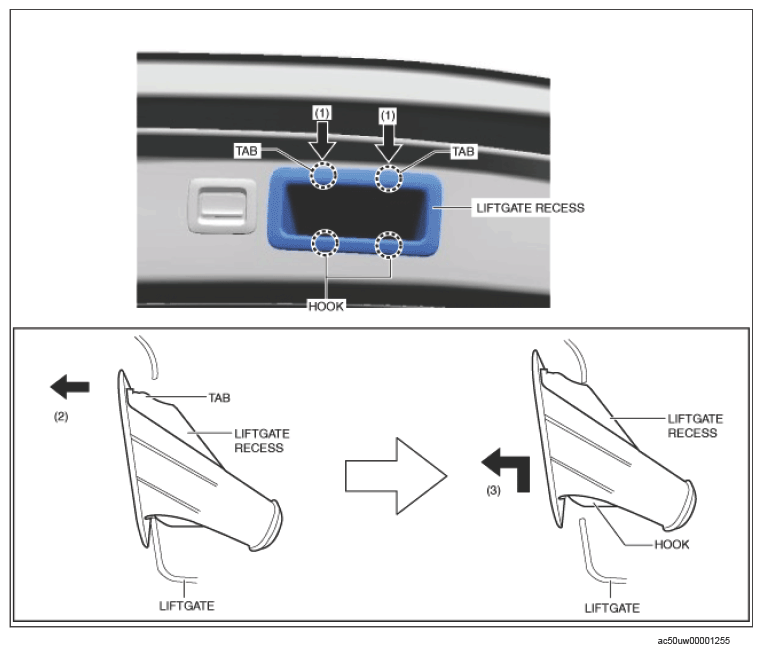

  1. While pressing the liftgate recess in the direction of arrows (1) shown in the figure below, move the liftgate recess in the direction of arrow (2), and detach the liftgate recess tab from the liftgate.
    G15743219Courtesy of MAZDA MOTORS CORP.
  2. Remove the liftgate recess in the direction of arrow (3) shown in the figure above while detaching the hooks of the liftgate recess.
  3. Install in the reverse order of removal.
