Console-Up Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Open the console lid.

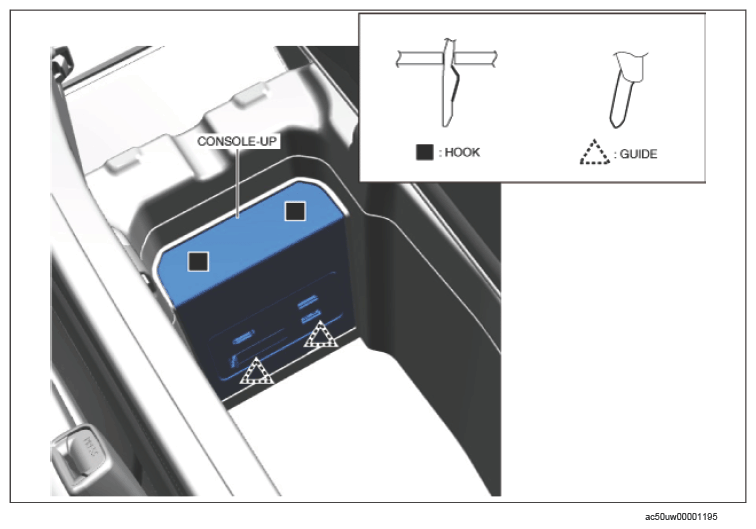

  3. Move the console-up in the direction of the arrow shown in the figure below and detach the hooks and guides.
    G15743121Courtesy of MAZDA MOTORS CORP.

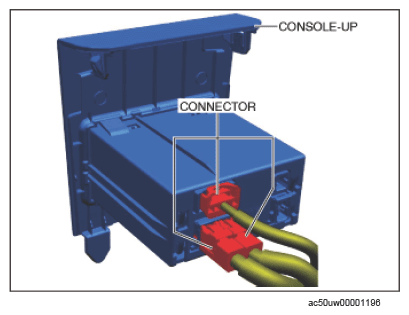

  4. Disconnect the connector.
    G15743122Courtesy of MAZDA MOTORS CORP.
  5. Remove the console-up.
  6. Install in the reverse order of removal.
