Center Display Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
  3. Remove the bolts.

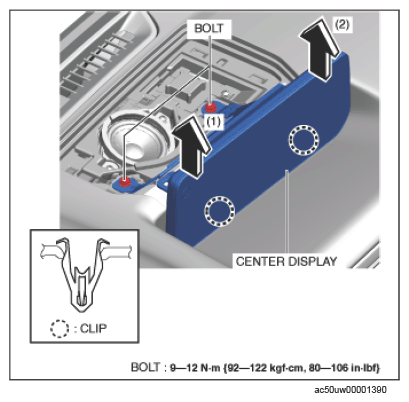

    Fig 1: Center Display And Bolts With Torque Specifications
    G15743472Courtesy of MAZDA MOTORS CORP.
  4. Move the center display in the order of arrow (1) and arrow (2) as shown in the figure above to detach the clips.
  5. Remove the center display.
  6. Disconnect the connectors.

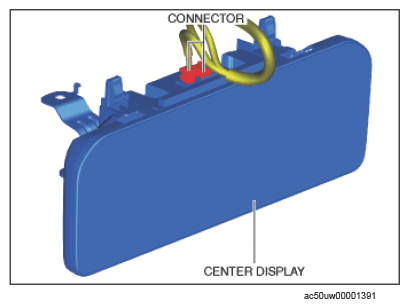

    G15743473Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
