Structural View
HVAC CONTROL SYSTEM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION (MANUAL A/C) .) |
| 2 | Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL (MANUAL A/C) .) (See AIRFLOW MODE ACTUATOR INSTALLATION (MANUAL A/C) .) (See AIRFLOW MODE ACTUATOR INSPECTION (MANUAL A/C) .) |
| 3 | Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AIR MIX ACTUATOR INSPECTION (MANUAL A/C) .) |
| 4 | Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AIR INTAKE ACTUATOR INSPECTION (MANUAL A/C) .) |
| 5 | Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION (MANUAL A/C) .) (See CLIMATE CONTROL UNIT INSPECTION (MANUAL A/C) .) |

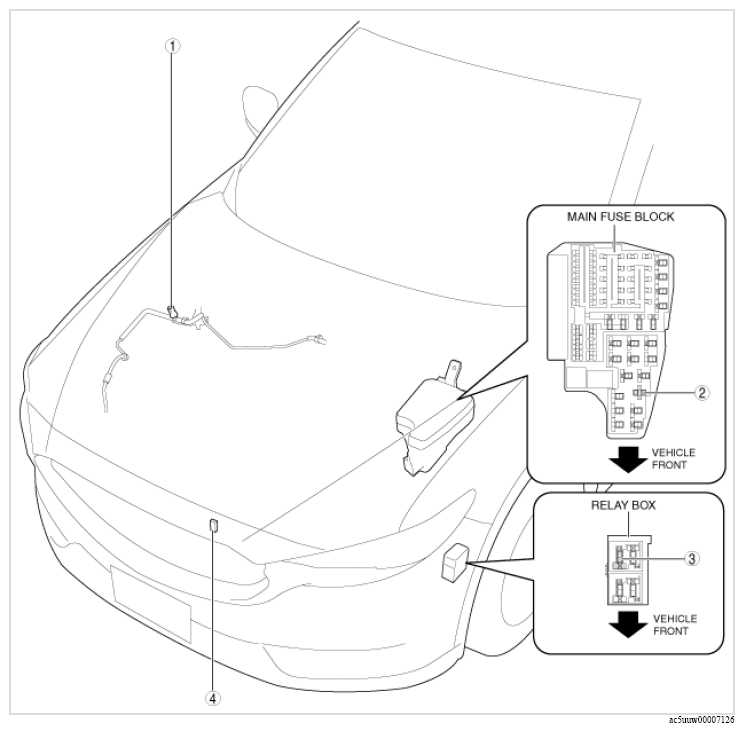

HVAC CONTROL SYSTEM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See REFRIGERANT PRESSURE SENSOR INSPECTION (MANUAL A/C) .) |
| 2 | Blower relay (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 3 | A/C relay (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 4 | Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AMBIENT TEMPERATURE SENSOR INSPECTION (MANUAL A/C) .) |
