Accelerator Pedal Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

Remove in the order indicated in the table.

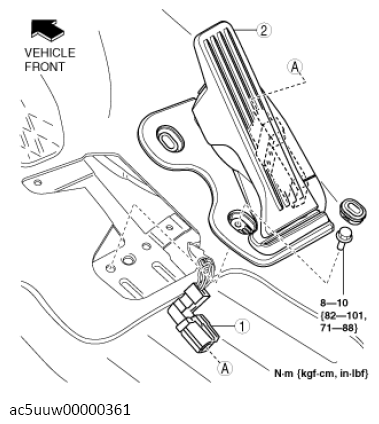

Fig 1: Accelerator Pedal Components Location With Torque Specification - SKYACTIV-G 2.5 (VIN M)

Courtesy of MAZDA MOTORS CORP.

ACCELERATOR PEDAL COMPONENT OPERATIONS

Component No.	Refer to
1	APP sensor connector
2	Accelerator pedal
