Quick Diagnostic Chart

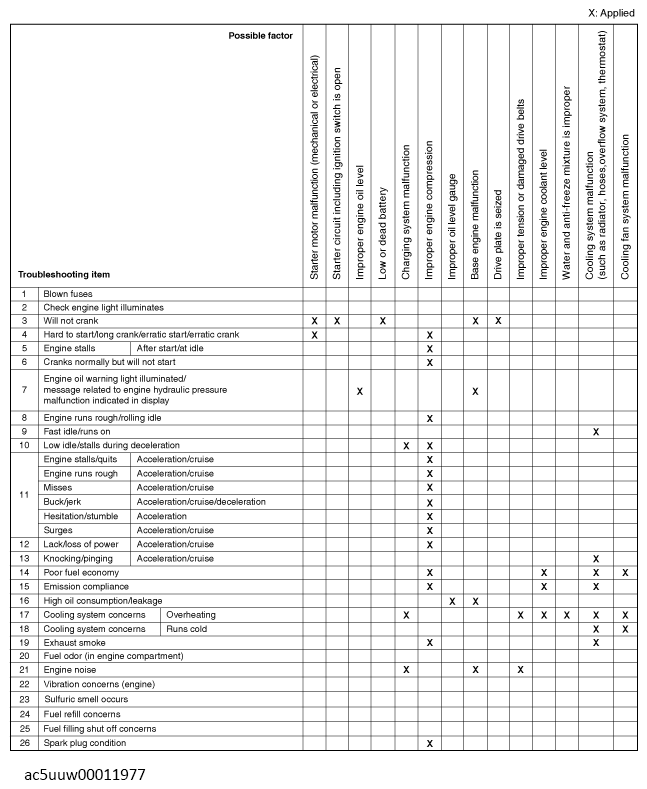

G14464511Courtesy of MAZDA MOTORS CORP.

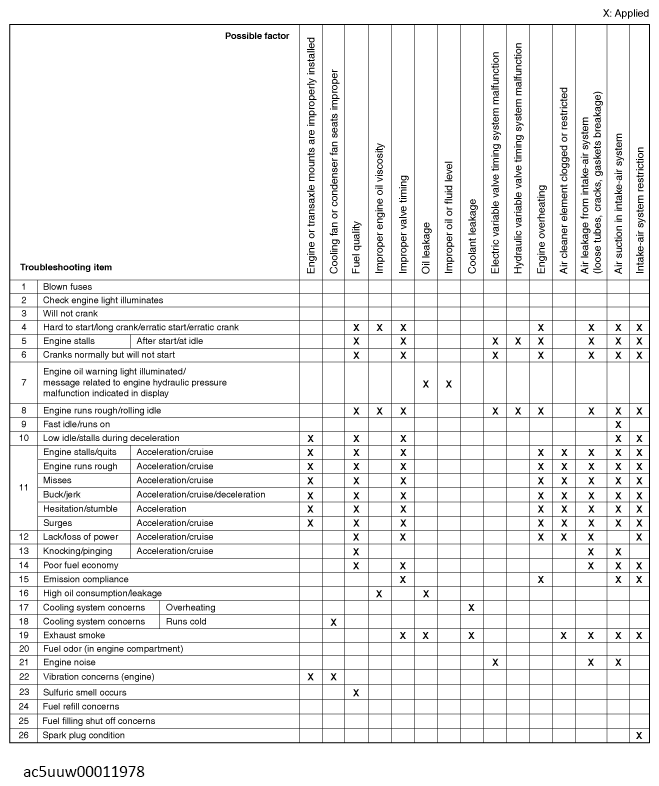

G14464512Courtesy of MAZDA MOTORS CORP.

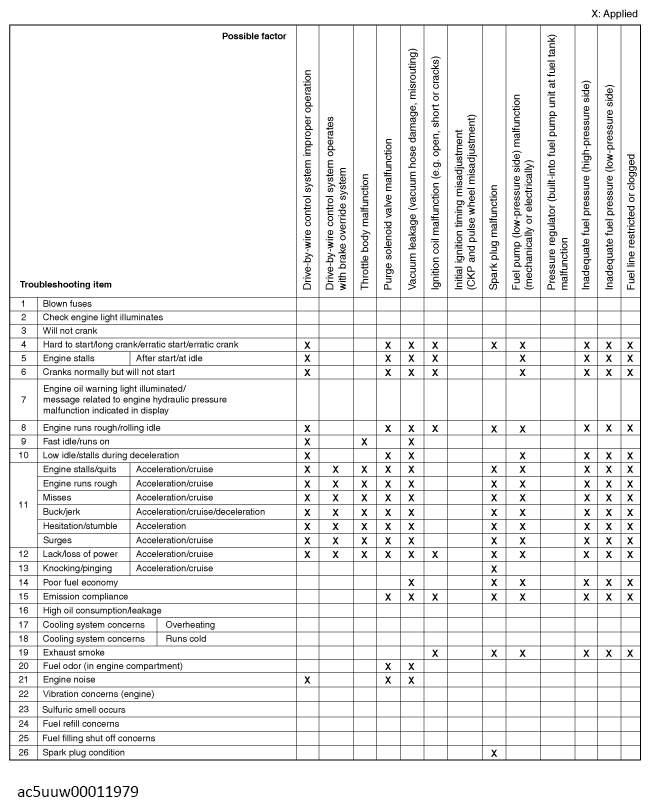

G14464513Courtesy of MAZDA MOTORS CORP.

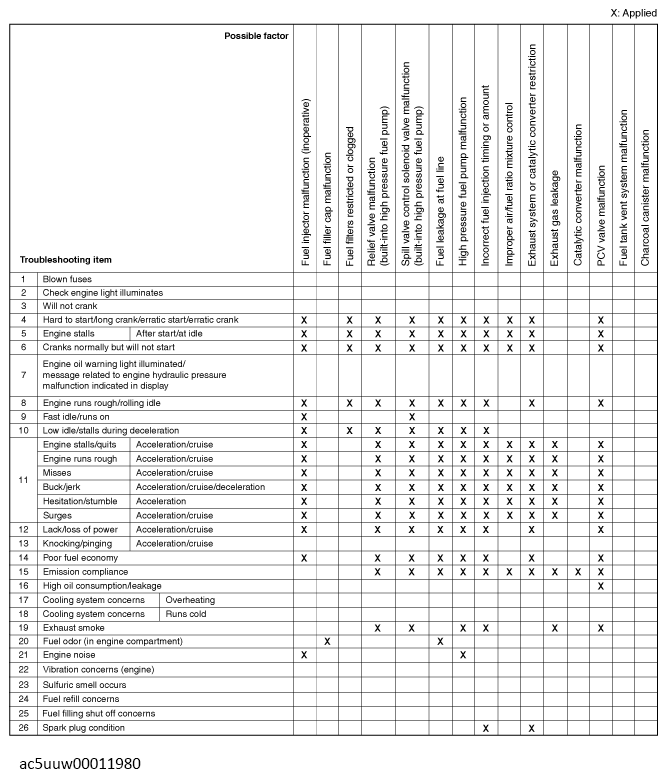

G14464514Courtesy of MAZDA MOTORS CORP.

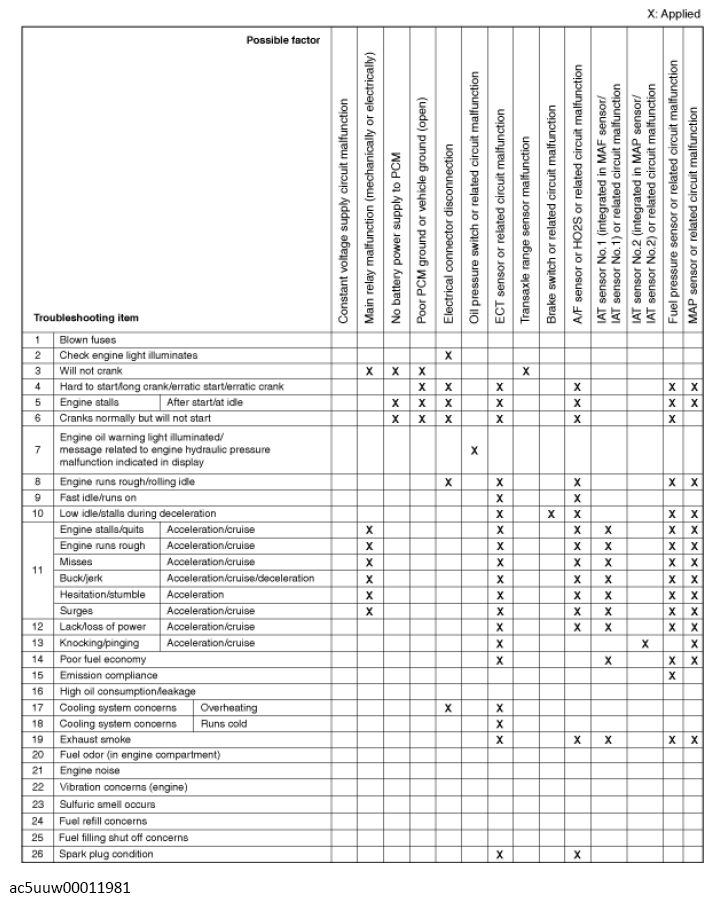

G14464515Courtesy of MAZDA MOTORS CORP.

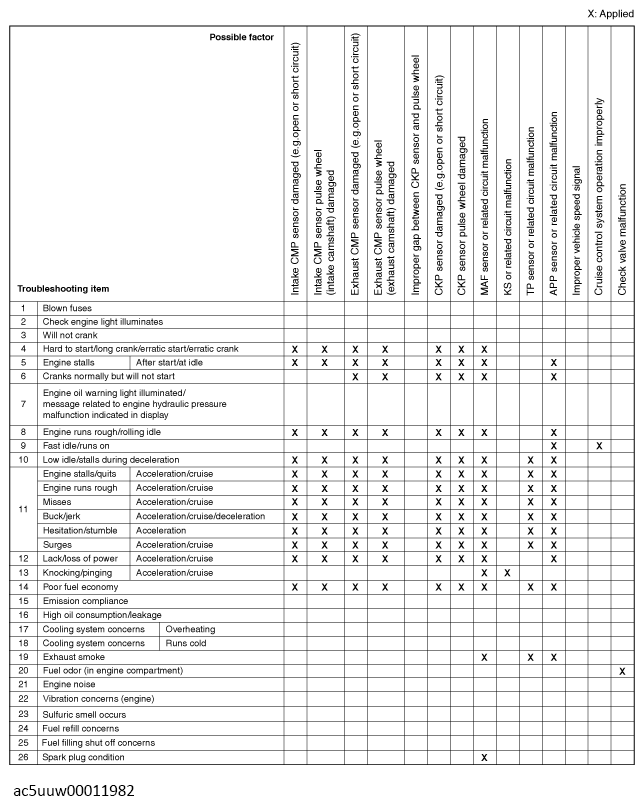

G14464516Courtesy of MAZDA MOTORS CORP.

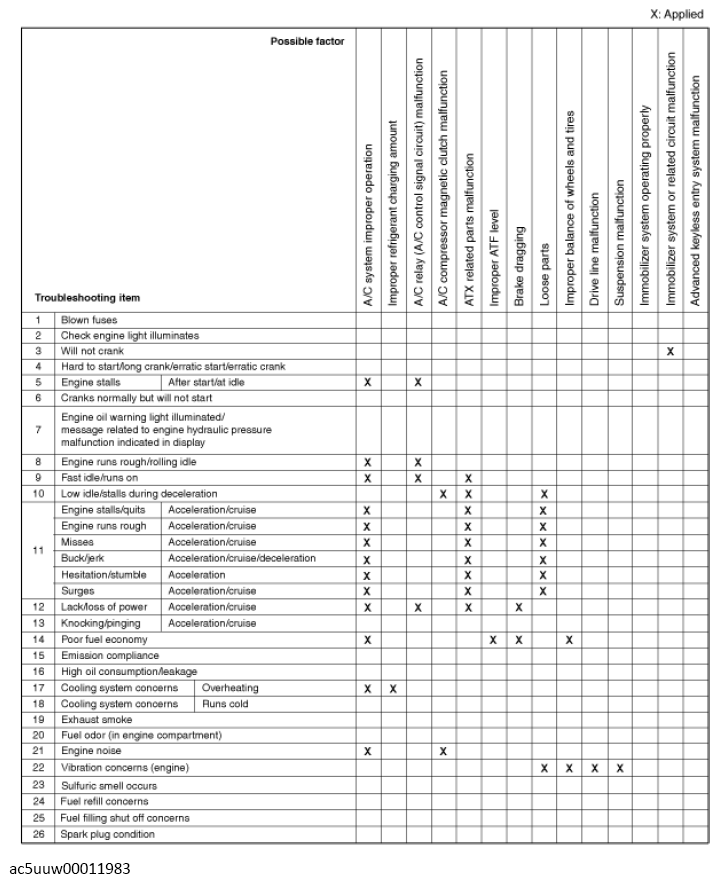

G14464517Courtesy of MAZDA MOTORS CORP.

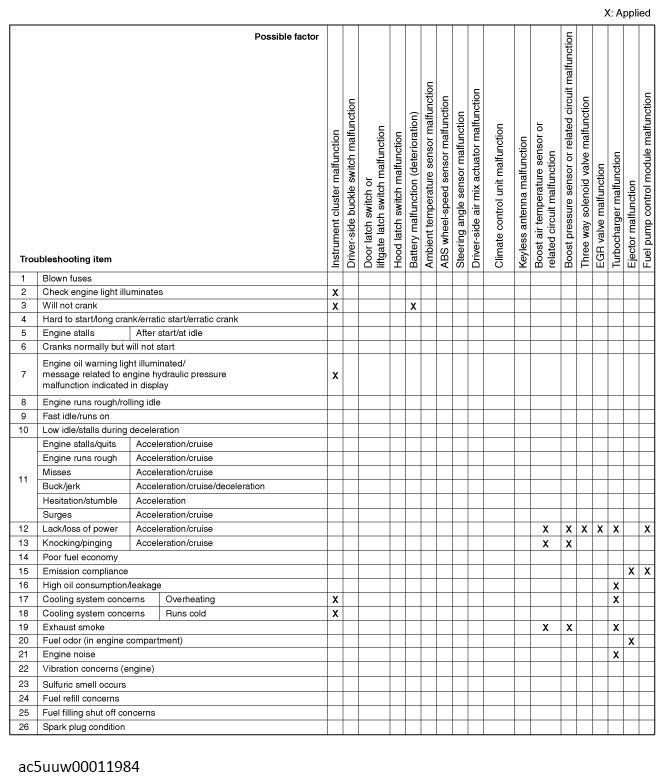

G14464518Courtesy of MAZDA MOTORS CORP.
