Ignition coil/ion sensor Removal Note

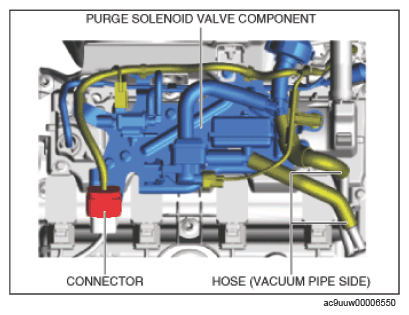

  1. Disconnect the connector and hoses shown in the figure below.
    G15630187Courtesy of MAZDA MOTORS CORP.

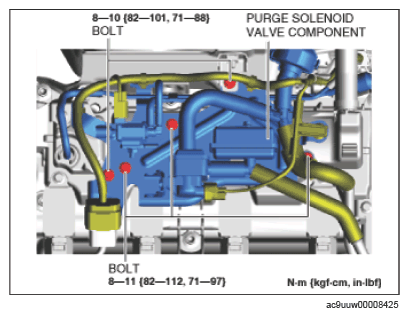

  2. Remove the bolts shown in the figure below.
    Fig 1: Purge Solenoid Valve Component And Bolts With Torque Specification
    G15630188Courtesy of MAZDA MOTORS CORP.

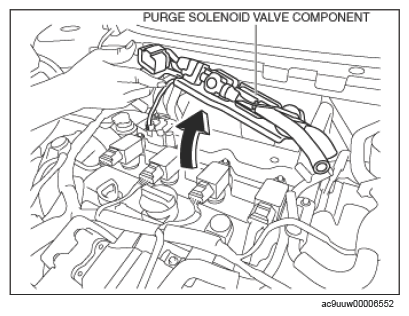

  3. Set the purge solenoid valve component aside as shown in the figure below.
    G15630189Courtesy of MAZDA MOTORS CORP.
  4. Remove the ignition coil/ion sensors.
