Terminal B Cable Disconnection Note

  1. Remove the two bolts shown in the figure.

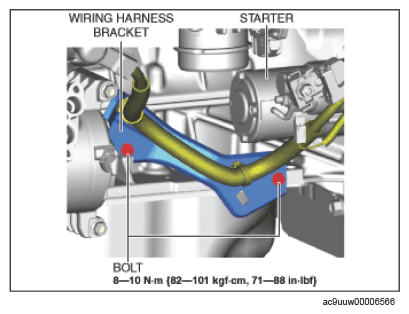

    Fig 1: Starter, Wiring Harness Bracket And Bolts Tightening Sequence
    G15630214Courtesy of MAZDA MOTORS CORP.
  2. Set aside the wiring harness and wiring harness bracket as a single unit.
  3. Disconnect the terminal B cable.
