Battery Tray Installation Note

Set the battery tray to the installation position.
Tighten the battery tray installation bolts in the order shown in the figure.

Fig 1: Battery Tray Installation Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

Tightening torque

22-30 N.m {2.3-3.0 kgf.m, 17-22 ft.lbf}

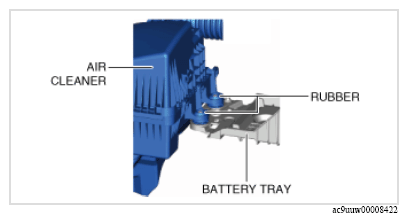

Install the rubber at the two locations on the air cleaner component to the battery tray.

Courtesy of MAZDA MOTORS CORP.
