Battery Tray Installation Note

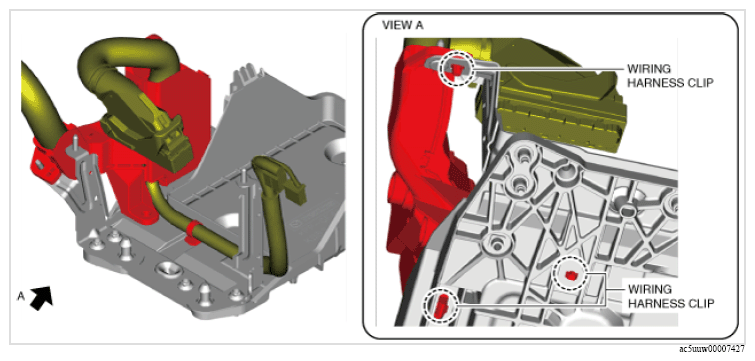

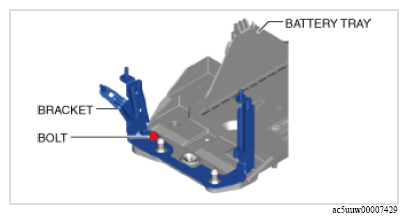

1. Temporarily tighten the bolt shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

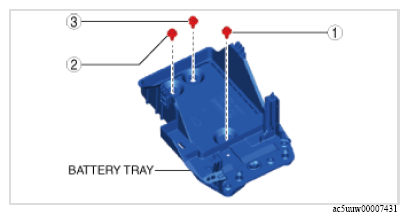

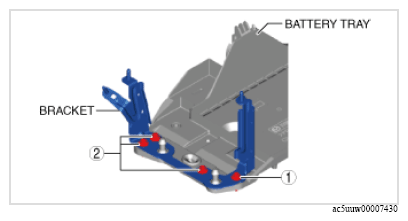

2. Tighten the bolts in the order shown in the figure.
   Fig 1: Battery Tray, Bracket And Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

   Tightening torque

   8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}

Fig 2: Battery Tray Installation Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

Tightening torque

22-30 N.m {2.3-3.0 kgfm, 17-22 ft.lbf}

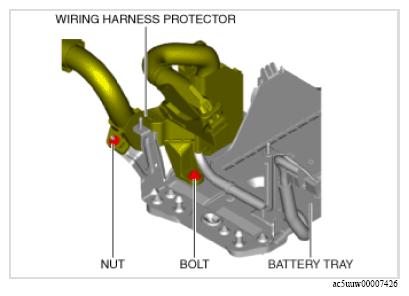

Courtesy of MAZDA MOTORS CORP.

Tightening torque

Bolt: 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

Nut: 9-12 N.m {92-122 kgf.cm, 80-106 in.lbf}
