Washer Fluid-Level Sensor Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

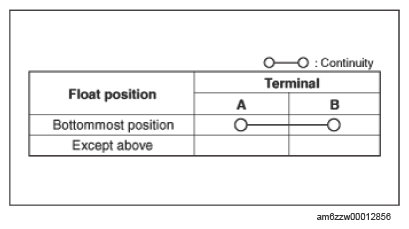

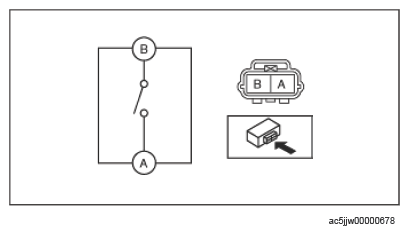

4. Inspect for continuity according to washer fluid level between the washer fluid-level sensor terminals.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the washer fluid-level sensor. (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)
