DTC B10AF-12: Blower Relay Circuit Malfunction [Front Body Control Module (FBCM)]: Notes
DTC B10AF:12 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Blower relay circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to power supply in the blower relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Blower relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

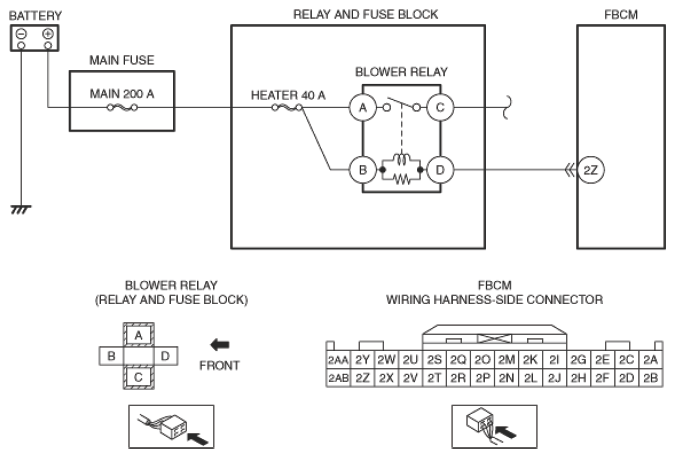

- Short to power supply in wiring harness between blower relay terminal D and front body control module (FBCM) terminal 2Z
- Front body control module (FBCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
