Radiator Grille Disassembly/Assembly: Notes

Replacement Part

1. Remove the front camera. (With 360° view monitor system)

   (See FRONT CAMERA REMOVAL/INSTALLATION .)

2. Disassemble in the order indicated in the table.

   Step 1

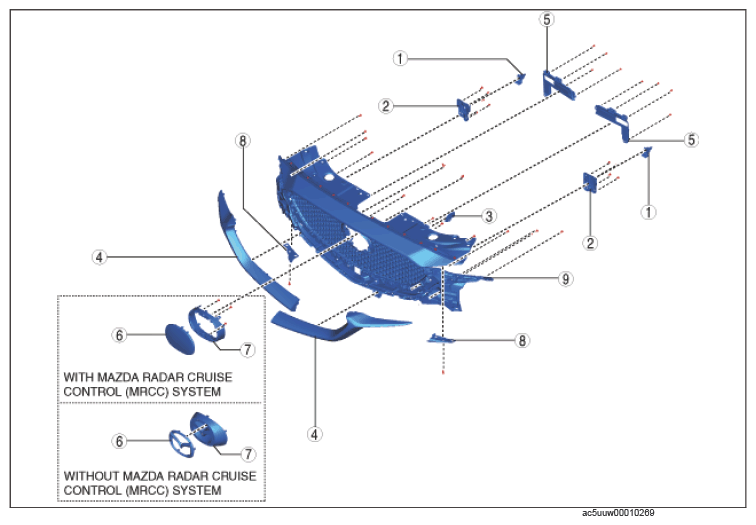

   • Type A

   Courtesy of MAZDA MOTORS CORP.

   RADIATOR GRILLE COMPONENT OPERATIONS



   Component No.	Refer to
   1	Locator pin
   2	Locator pin bracket
   3	Clip
   4	Lower grille molding
   5	Radiator grille cover (With radiator grille cover)
   6	Mascot
   7	Mascot base
   8	Grille garnish
   9	Radiator grille component

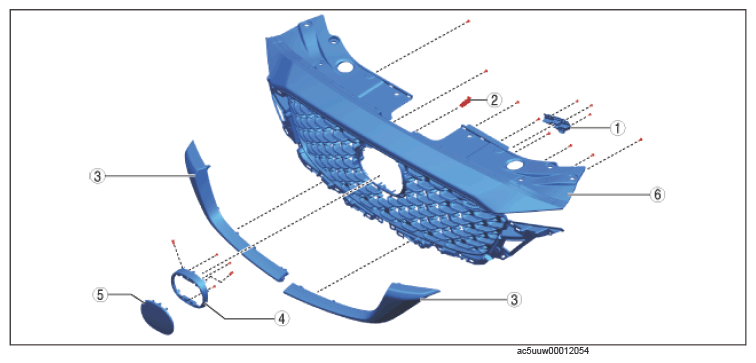

   • Type B

   Courtesy of MAZDA MOTORS CORP.

   RADIATOR GRILLE COMPONENT OPERATIONS



   Component No.	Refer to
   1	Bracket
   2	Clip
   3	Lower grille molding
   4	Mascot base
   5	Mascot
   6	Radiator grille component

   Step 2

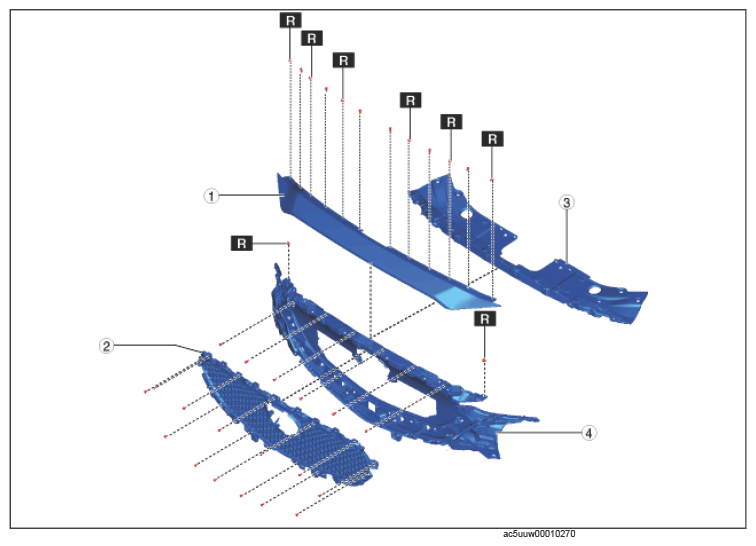

   • Type A

   Courtesy of MAZDA MOTORS CORP.

   RADIATOR GRILLE COMPONENT OPERATIONS



   Component No.	Refer to
   1	Upper face (See Rivet Removal Note .) (See Upper Face Removal Note .)
   2	Grille mesh
   3	Radiator grille bracket
   4	Radiator grille reinforcement

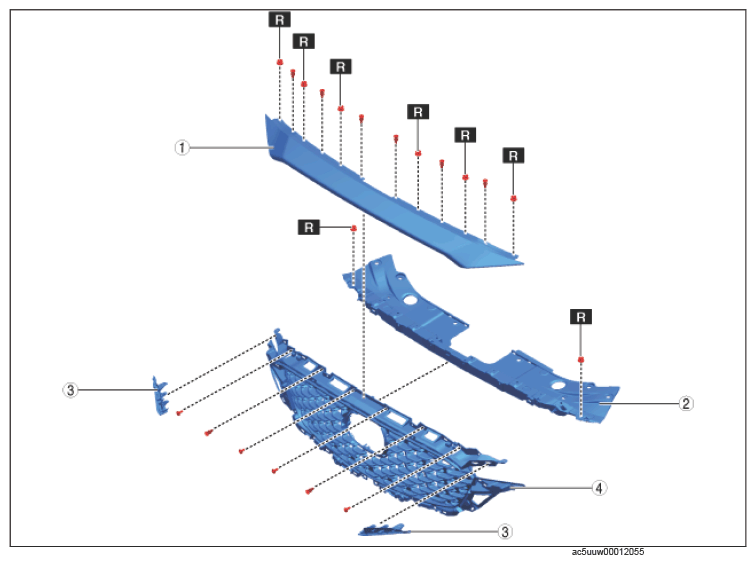

   • Type B

   Courtesy of MAZDA MOTORS CORP.

   RADIATOR GRILLE COMPONENT OPERATIONS



   Component No.	Refer to
   1	Upper face (See Rivet Removal Note .) (See Upper Face Removal Note .)
   2	Radiator grille bracket
   3	Grille garnish
   4	Grille mesh

3. Assemble in the reverse order of disassembly.
