DTC B1451-02; Return Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Return switch circuit malfunction |
| Detection condition |
- The voltage input to the return switch does not change while the power liftgate (PLG) system is operating.
|
| Fail-safe |
- Stops the power liftgate (PLG) system operation.
|
| Possible cause |

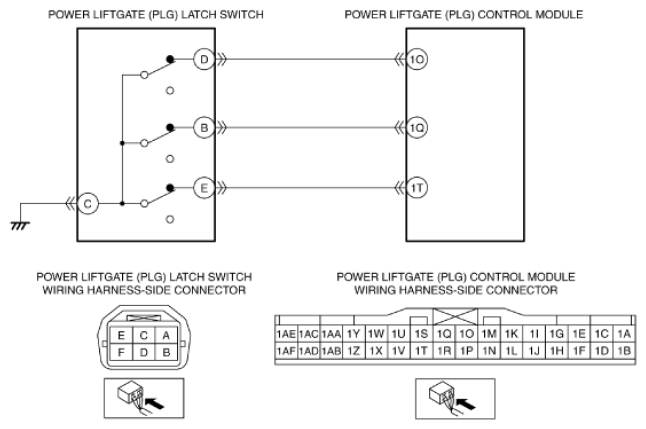

- Power liftgate (PLG) latch switch connector or terminal malfunction
- Open circuit in wiring harness between power liftgate (PLG) latch switch terminal C and body ground
- Power liftgate (PLG) control module connector or terminal malfunction
- Short to ground in wiring harness between power liftgate (PLG) latch switch terminal E and power liftgate (PLG) control module terminal 1T
- Short to power supply in wiring harness between power liftgate (PLG) latch switch terminal E and power liftgate (PLG) control module terminal 1T
- Open circuit in wiring harness between power liftgate (PLG) latch switch terminal E and power liftgate (PLG) control module terminal 1T
- Power liftgate (PLG) latch switch malfunction
- Power liftgate (PLG) control module malfunction
|
|
|
