Mid-wiring Harness Connector Disconnect Note

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out the mid-wiring harness connector lock lever in the direction of arrow (1) shown in the figure.

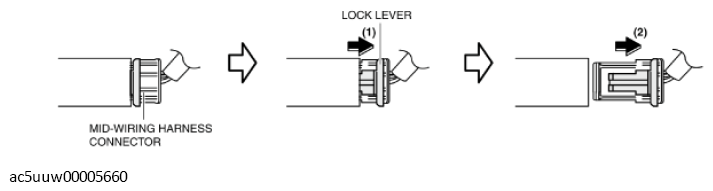

    Fig 1: Removing Mid-Wiring Harness Connector Lock Lever
    G11428468Courtesy of MAZDA MOTORS CORP.
  2. Move the mid-wiring harness connector in the direction of arrow (2) shown in the figure to disconnect it.
