Special Service Tool (SST)

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
49 H066 002
Deployment tool
G11428460Courtesy of MAZDA MOTORS CORP.
  1. Before using the SST (49 H066 002), inspect its operation.

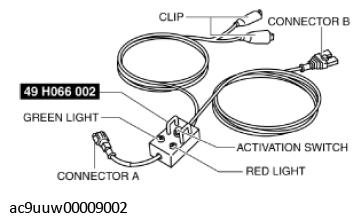

Fig 1: SST Components
G11428461Courtesy of MAZDA MOTORS CORP.
