Side air bag module

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the side air bag module connector.

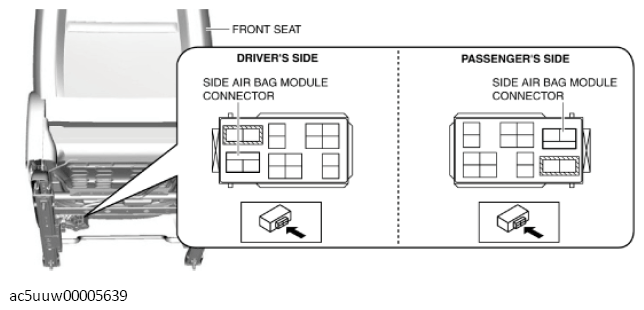

    Fig 1: Side Air Bag Module Connector Terminals
    G11428354Courtesy of MAZDA MOTORS CORP.
  2. Connect the side air bag module connector to either one of the SST (adapter harness) terminals shown in the figure.

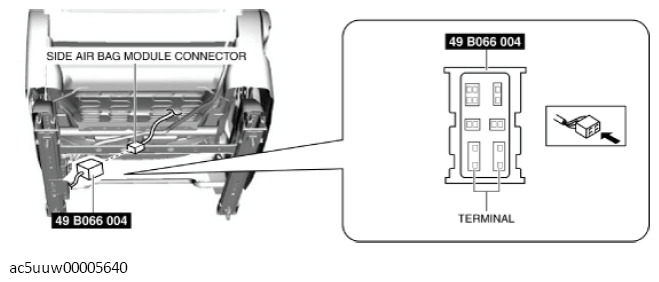

    Fig 2: SST (Adapter Harness) Connector Terminals
    G11428355Courtesy of MAZDA MOTORS CORP.
  3. Connect the SST (Deployment tool) to the SST (Adapter harness).
    Fig 3: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G11428356Courtesy of MAZDA MOTORS CORP.
  4. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  5. Verify that the red lamp on the SST (Deployment tool) is illuminated.
  6. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.
  7. Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.
    Fig 4: Activation Switch
    G11428349Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  8. Disconnect the SST (Deployment tool) from the SST (Adapter harness).
