DTC B118D-11; Blind Spot Monitoring (BSM) Warning Light (RH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Blind spot monitoring (BSM) warning light (RH) circuit malfunction |
| Detection condition |
- Blind spot monitoring (BSM) control module (RH) detects a short to ground in the blind spot monitoring (BSM) warning light (RH) circuit.
|
| Fail-safe |
- Blind spot monitoring (BSM) system is stopped.
|
| Possible cause |
- Power outer mirror (RH) connector or terminal malfunction
- Blind spot monitoring (BSM) control module (RH) connector or terminal malfunction

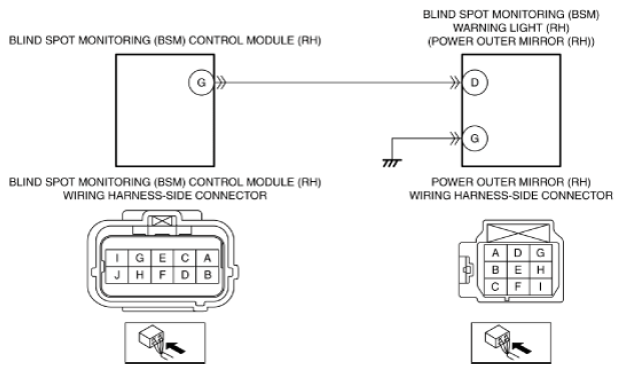

- Short to ground in wiring harness between blind spot monitoring (BSM) control module (RH) terminal G and power outer mirror (RH) terminal D
- Blind spot monitoring (BSM) warning light (RH) malfunction
- Blind spot monitoring (BSM) control module (RH) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
