Battery Removal/Installation (VIN Y): Notes

Install in the reverse order of removal.

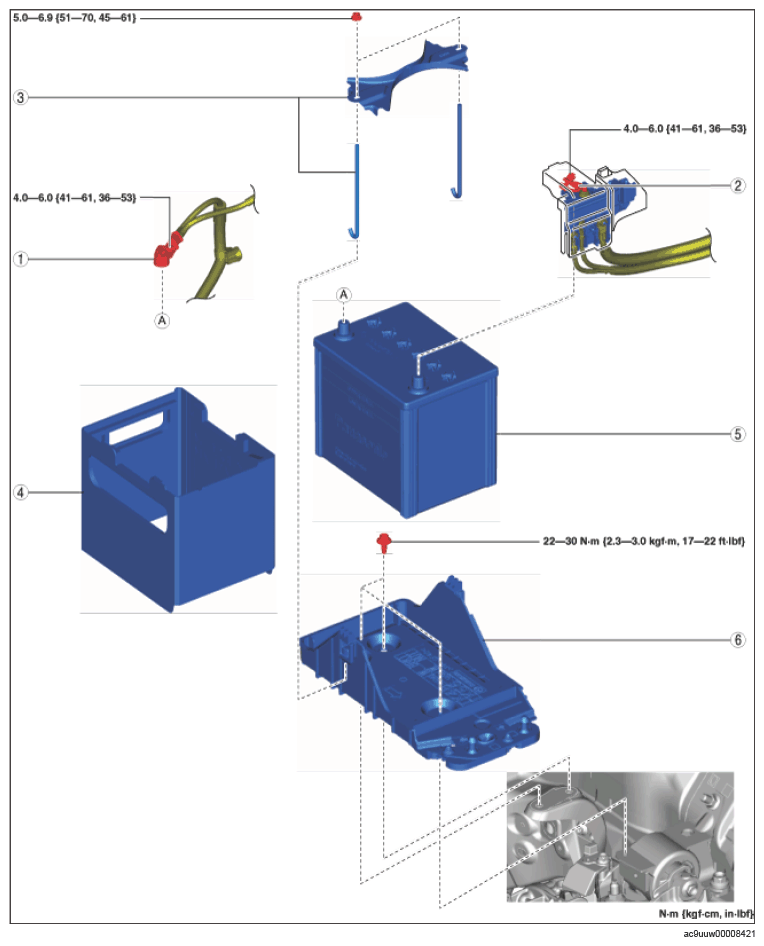

Fig 1: Battery Components Location With Torque Specification (VIN Y)

Courtesy of MAZDA MOTORS CORP.

BATTERY COMPONENT OPERATIONS

Component No.	Refer to
1	Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) (See Negative Battery Terminal Connection Note .)
2	Positive battery cable
3	Battery clamp (See Battery Clamp Installation Note .)
4	Battery box (See Battery Box Installation Note .)
5	Battery
6	Battery tray (See Battery Tray Removal Note .) (See Battery Tray Installation Note .)
