Battery Removal/Installation (VIN M): Notes

Install in the reverse order of removal.

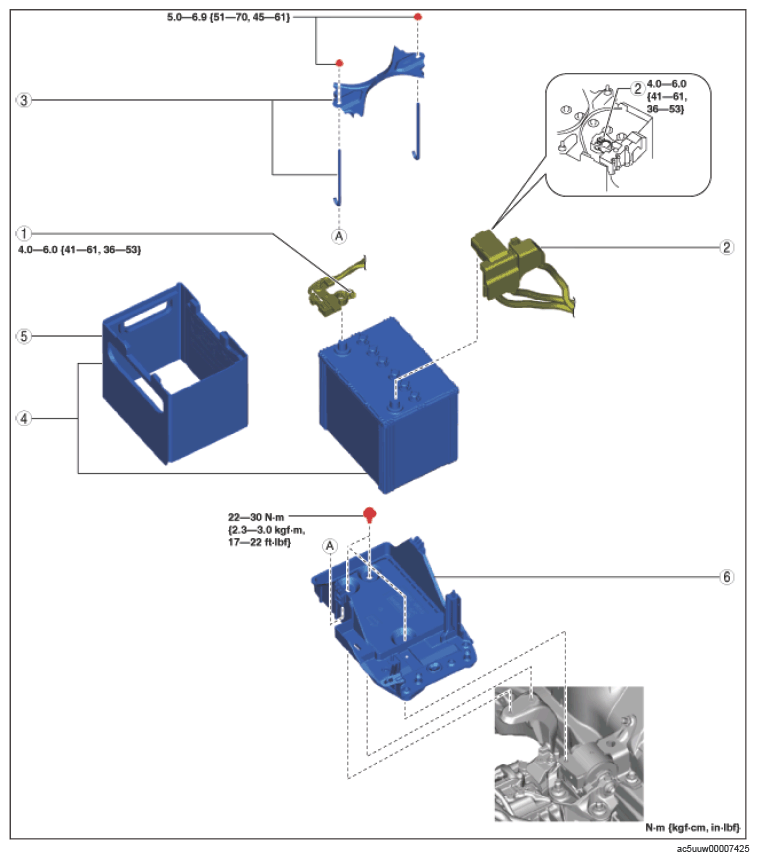

Fig 1: Battery Components Location With Torque Specification - SKYACTIV-G 2.5 (VIN M)

Courtesy of MAZDA MOTORS CORP.

BATTERY COMPONENT OPERATIONS

Component No.	Refer to
1	Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2	Positive battery terminal
3	Battery clamp
4	Battery, battery box (See Battery, Battery Box Removal Note .)
5	Battery box (See Battery Box Installation Note .)
6	Battery tray (See Battery Tray Removal Note .) (See Battery Tray Installation Note .)
