DTC B1454-23: Power Liftgate (PLG) Touch Sensor (LH) Circuit Malfunction [Power Liftgate (PLG) Control Module]: Notes

DTC B1454:23 (POWER LIFTGATE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Power liftgate (PLG) touch sensor (LH) circuit malfunction
Detection condition	Power liftgate (PLG) control module detected a short circuit to ground in the power liftgate (PLG) touch sensor (LH) circuit for 5 min or more.
Fail-safe	Stops the power liftgate (PLG) system operation.

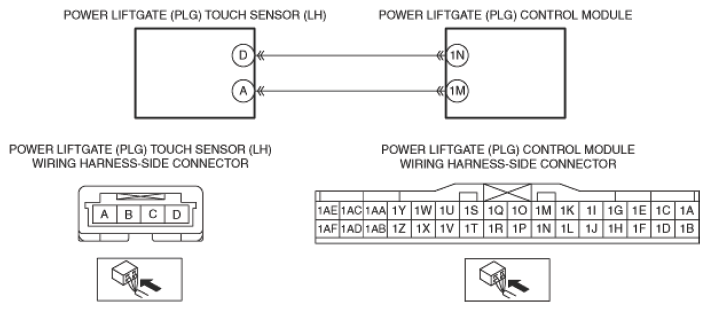

Possible cause	Power liftgate (PLG) touch sensor (LH) connector or terminal malfunction Power liftgate (PLG) control module connector or terminal malfunction Short to ground in wiring harness between power liftgate (PLG) touch sensor (LH) terminal D and power liftgate (PLG) control module terminal 1N Power liftgate (PLG) touch sensor (LH) malfunction Power liftgate (PLG) control module malfunction
Courtesy of MAZDA MOTORS CORP.
