Steering Wheel Bezel Removal/Installation
>>
Steering Wheel Bezel Installation Note
Steering Wheel Bezel Installation Note

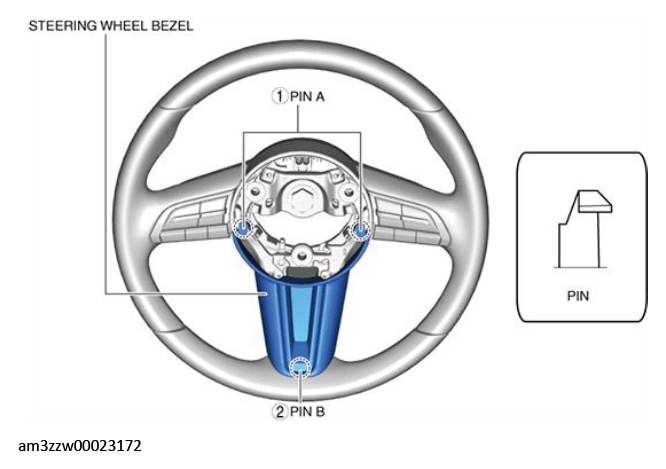

Assemble the steering wheel bezel pins A and B to the steering wheel in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
