Protector Removal Note

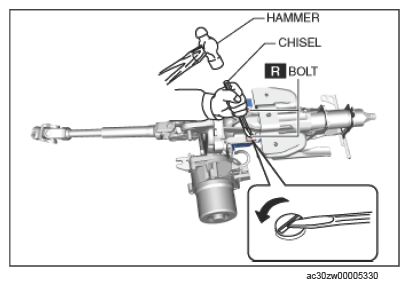

  1. Make a groove on the heads of the bolts by punching them with a chisel using a hammer.
    G15656358Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolts by rotating them counterclockwise.
  3. Remove the protector.
