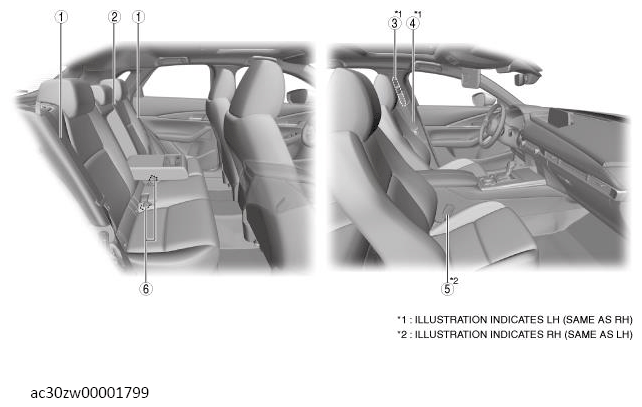

Structural View
SEAT BELT COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Rear seat belt (See REAR SEAT BELT REMOVAL/INSTALLATION [(US)] .) (See SEAT BELT INSPECTION [(US)] .) |
| 2 | Rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION [(US)] .) |
| 3 | Adjuster anchor (See ADJUSTER ANCHOR REMOVAL/INSTALLATION .) |
| 4 | Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION [(US)] .) |
| 5 | Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION [(US)] .) (See BUCKLE SWITCH INSPECTION [(US)] .) |
| 6 | Rear buckle (See REAR BUCKLE REMOVAL/INSTALLATION .) (See BUCKLE SWITCH INSPECTION [(US)] .) |
