Ignition System Location Index

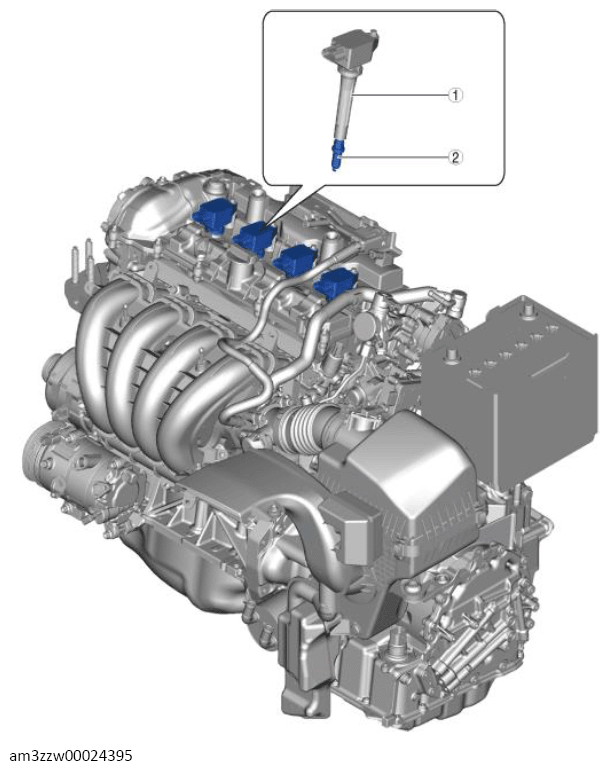

Fig 1: Ignition System Components Location
G13714168Courtesy of MAZDA MOTORS CORP.
IGNITION SYSTEM COMPONENT OPERATIONS

Component No. Refer to
1 Ignition coil/ion sensor
(See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .)
(See IGNITION COIL INSPECTION .)
2 Spark plug
(See SPARK PLUG REMOVAL/INSTALLATION .)
(See SPARK PLUG INSPECTION .)
