Ignition Coil/Ion Sensor Removal/Installation

NOTE:

• The ion sensor is built into the ignition coil. To verify the applicability of the ion sensor, determine the terminal type from the following figure.

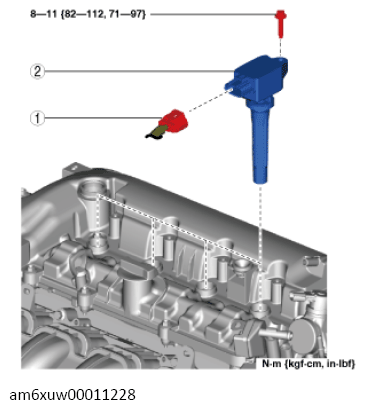

Fig 1: Ignition Coil/Ion Sensor Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal

Courtesy of MAZDA MOTORS CORP.

IGNITION COIL/ION SENSOR COMPONENT OPERATIONS

Component No.	Refer to
1	Connector
2	Ignition coil/ion sensor
