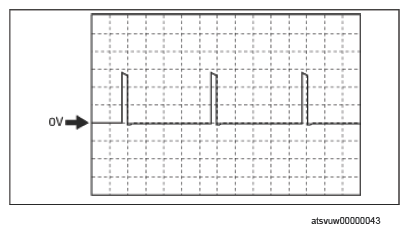

EGR valve (-)

G15654642

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1CN (+)-body ground (-)

Oscilloscope setting

5 V/DIV (Y), 400 μs//DIV (X), DC range

Vehicle condition

Idle (after warm up)
