Generator Disassembly/Assembly [SKYACTIV-G 2.5 (VIN M)]: Notes

CAUTION:
  • Vehicle specifications differ depending on the vehicle identification number (VIN).

Applied VIN type A:

Applied VIN type B:

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

Applied VIN type A:

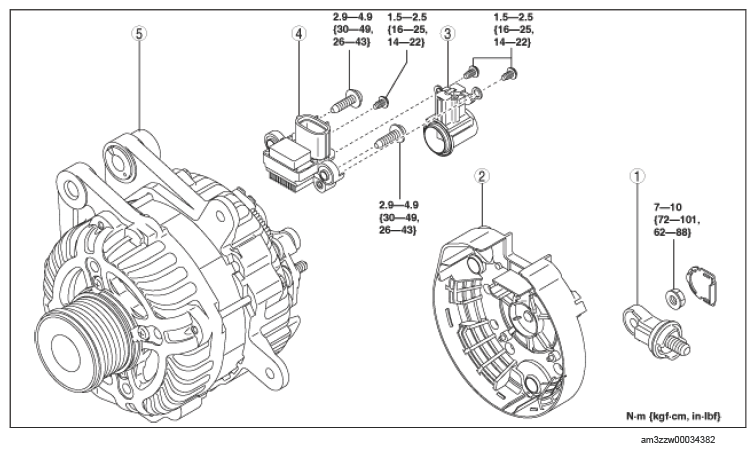

Fig 1: Generator Components Location With Torque Specification - VIN Type A
G15654329Courtesy of MAZDA MOTORS CORP.
GENERATOR COMPONENT OPERATIONS

Component No. Refer to
1 Terminal B component
2 Rear cover
3 Brush holder
4 Regulator assy
5 Generator

Applied VIN type B:

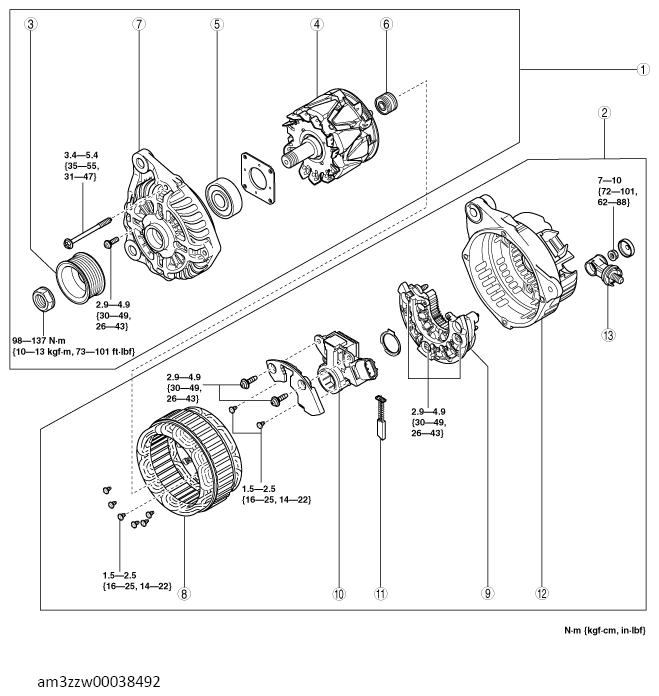

Fig 2: Generator Components Location With Torque Specification - VIN Type B
G14478526Courtesy of MAZDA MOTORS CORP.
GENERATOR COMPONENT OPERATIONS

Component No. Refer to
1 Rotor component
2 Stator coil component
3 Pulley
(See PULLEY DISASSEMBLY/ASSEMBLY NOTE .)
4 Rotor
5 Front bearing
6 Rear bearing
7 Front cover
8 Stator assy
9 Rectifier assy
10 Regulator assy
11 Brush set
(See BRUSH SET DISASSEMBLY NOTE .)
(See BRUSH SET ASSEMBLY NOTE .)
12 Cover. R
13 Terminal assy. B
