Cluster Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(US)] .)
  3. With the hooks pressed in the direction of arrows (1) shown in the figure, push out the cluster switch No. 1 in the direction of arrow (2) and remove it from the driver-side lower panel.

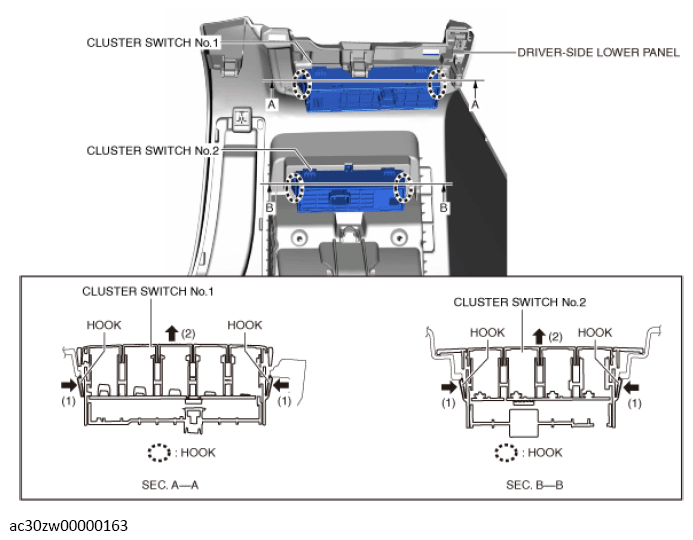

    G13560635Courtesy of MAZDA MOTORS CORP.
  4. With the hooks pressed in the direction of arrows (1) shown in the figure, push out the cluster switch No. 2 in the direction of arrow (2) and remove it from the driver-side lower panel.
  5. Install in the reverse order of removal.
